Projects/ Upper West Side Apartment Renovation

Combination of two apartment units into one duplex apartment with roof access. A new staircase, all new finishes, plumbing and electrical fixtures and appliances. The apartment is reconfigured with 3 bedrooms, 2.5 bathrooms and a new solarium on the existing roof.



Project Data

Project Role: Design Architect, Project Documentation, Construction Administration and Architect of Record.
Project Description: Residential Alt-1 with LPC filing. Renovation of Multi-family Unit Apartment.
Project Location: Upper East Side, Manhattan, New York 10024 USA
Design Year: 2014
Construction Year: 2014-2015
Construction Time: 6 months
Status: Built
Project Elements: Utilization of Sustainable Materials, Indoor Air Quality Control, Construction Materials Related VOC Level Control.
Disciplines Involved: Architectural, Electrical, Mechanical, Plumbing and Structural.

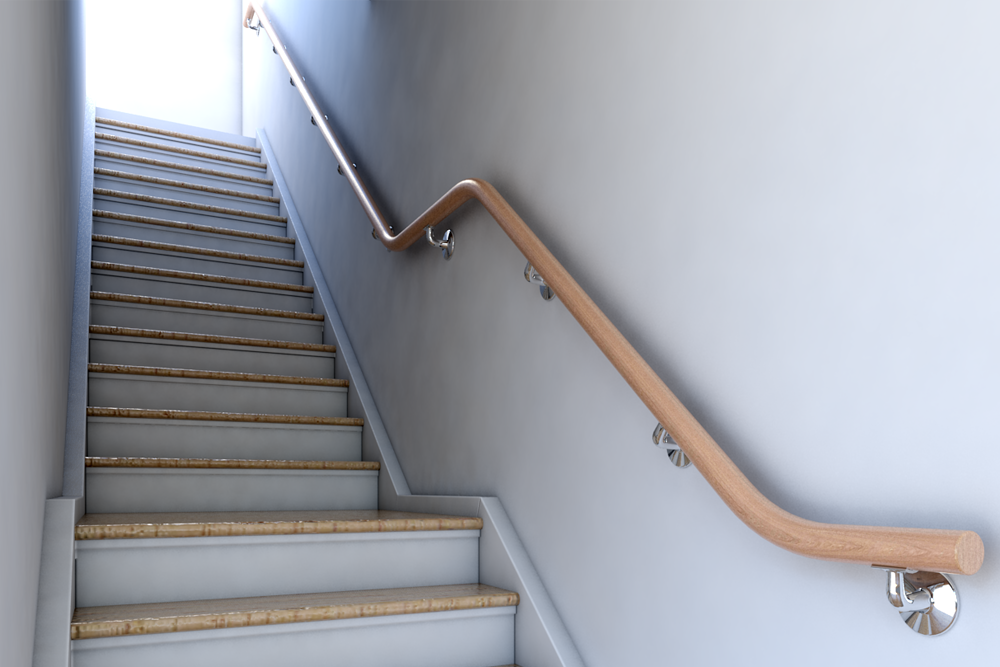

Design Development rendering of the new staircase.

Design Development rendering of the new staircase.

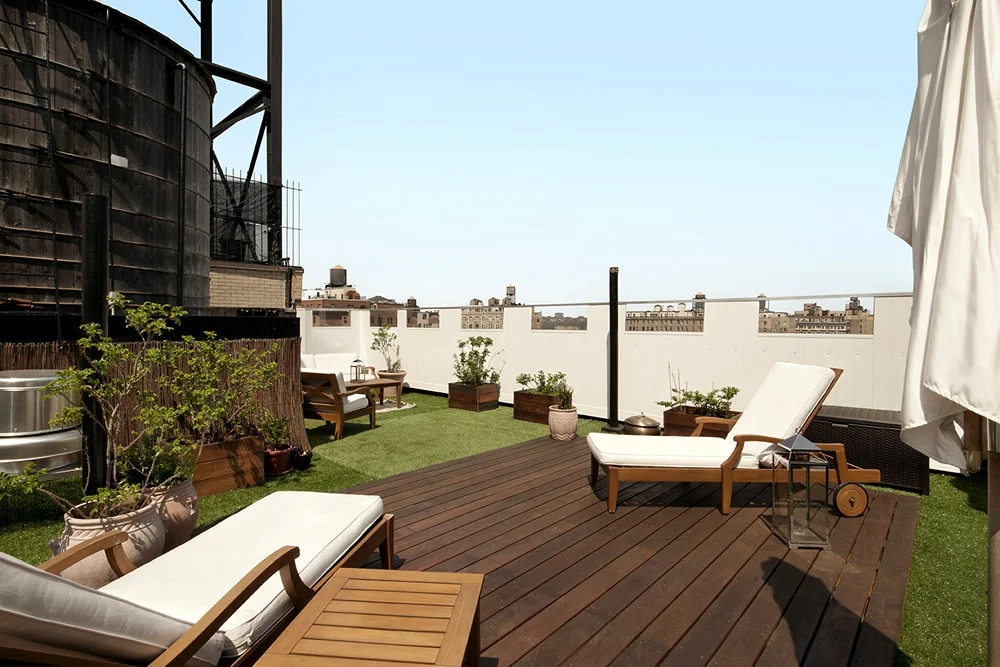

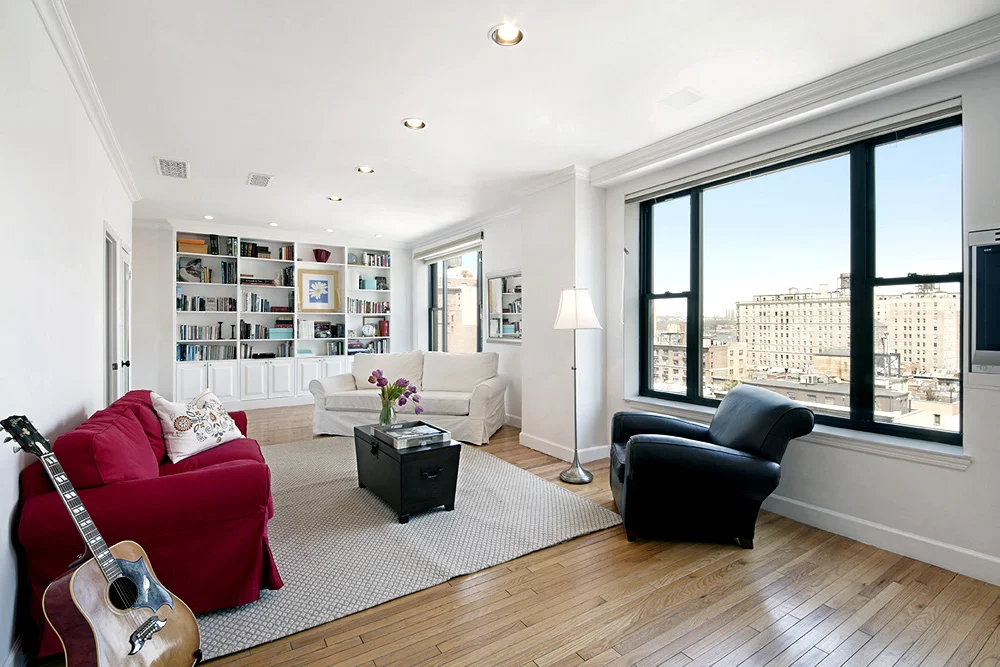

The Living Space is enlarged by removal of closets and partitions, the upstairs former simplex unit is transformed into the night area of the duplex apartment with access to a new solarium on the roof.

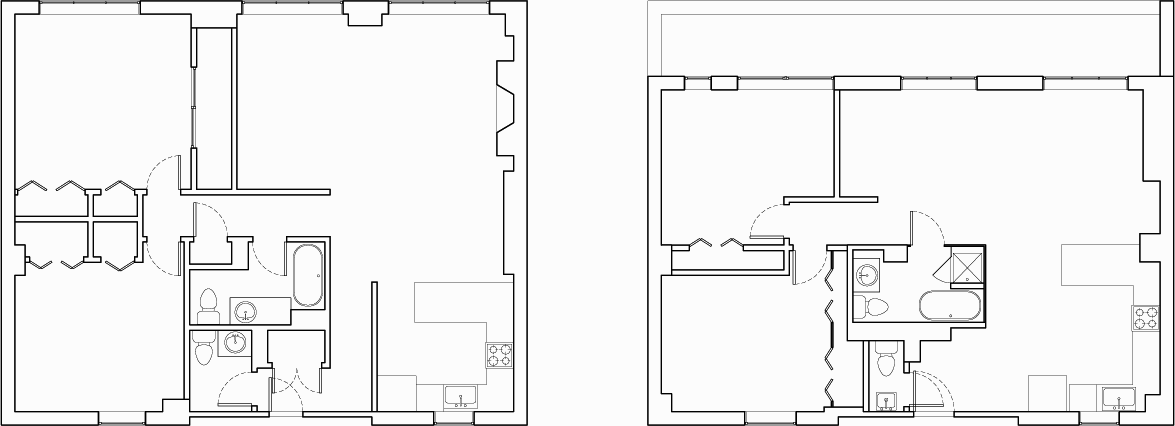

Existing Conditions Plans

Existing Conditions Plans

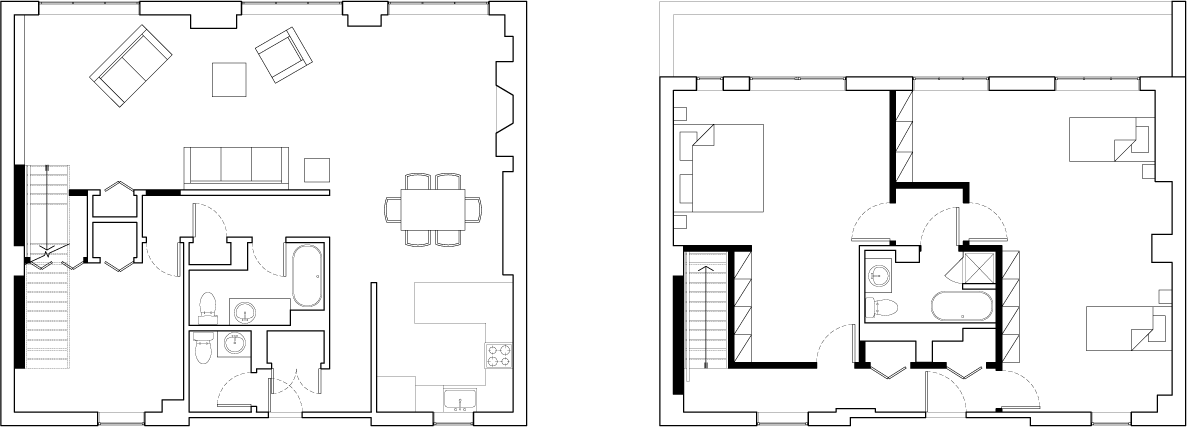

Construction Plans

Construction Plans
